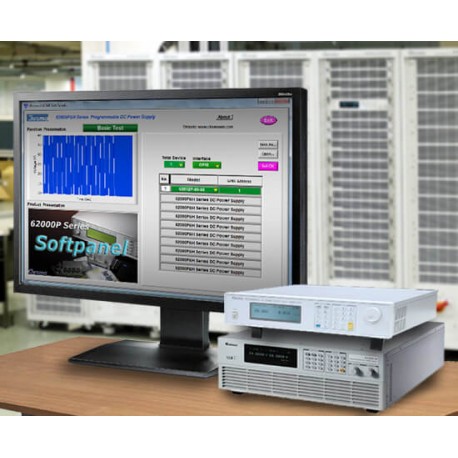

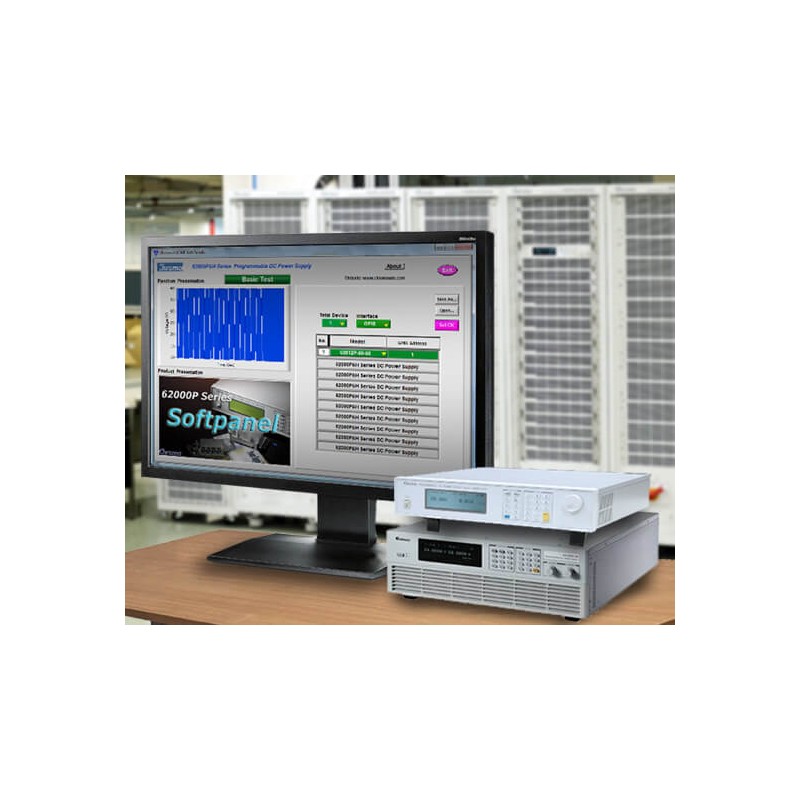

The Chroma 62000P&H Series Softpanel provides convenient and practical functions for user to test power more efficiently.

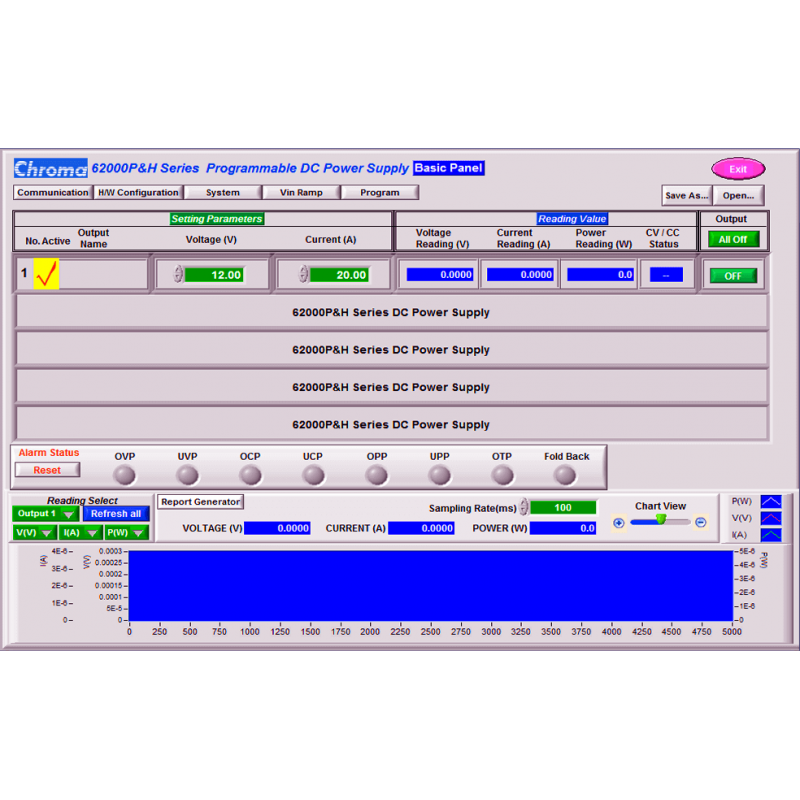

The user can set voltage and current values using the functions in the Basic panel. When outputting the set voltage and current, the softpanel will measure the input voltage, current and power of the UUT continuously. The user can use the Report Generator to keep a record of the test.

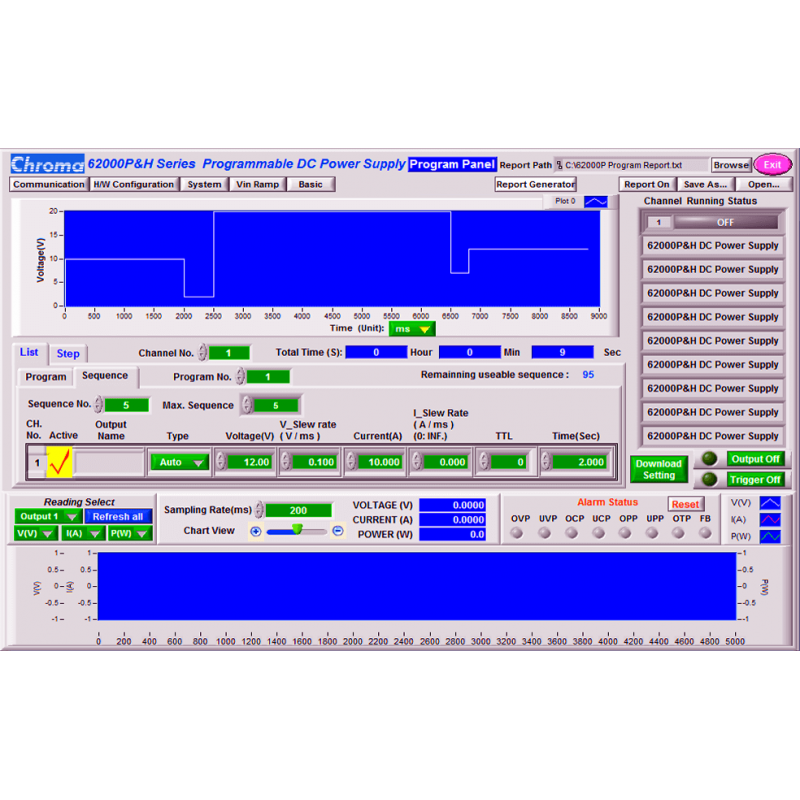

The LIST function, which is different from the Basic funcion, allows the user to edit various voltage settings according with their test requirements. The LIST function can provide up to 100 sequences.
The Automotive Test Standards function supports three automotive test standards (ISO 16750-2, GS 95024-2 and VW 80000). Users can test their UUTs using the built-in standard test parameters, or customize the test parameters based on their test requirements.
The following items are supported
Item | ISO 16750-2 Standard |
1 | Starting Profile |
2 | Reset behavior at voltage drop |
3 | Momentary drop in supply voltage |
4 | Slow Decrease and Increase of Voltage |
Item | GS 95024-2-1 Standard |
1 | Transient over-voltage |
2 | Transient under-voltage |
3 | Jump Start |
4 | Slow decrease and increase of supply voltage |
5 | Slow decrease, quick increase of supply voltage |
6 | Reset behavior |
7 | Start Pulses |
8 | Voltage curve with intelligent generator control |
Item | VW80000 Standard |
1 | Long-term over-voltage |
2 | Transient over-voltage |
3 | Transient under-voltage |
4 | Jump Start |
5 | Load Dump |
6 | Slow decrease and increase of supply voltage |
7 | Slow decrease, quick increase of supply voltage |
8 | Reset behavior |
9 | Start Pulses |
10 | Voltage curve with intelligent generator control |

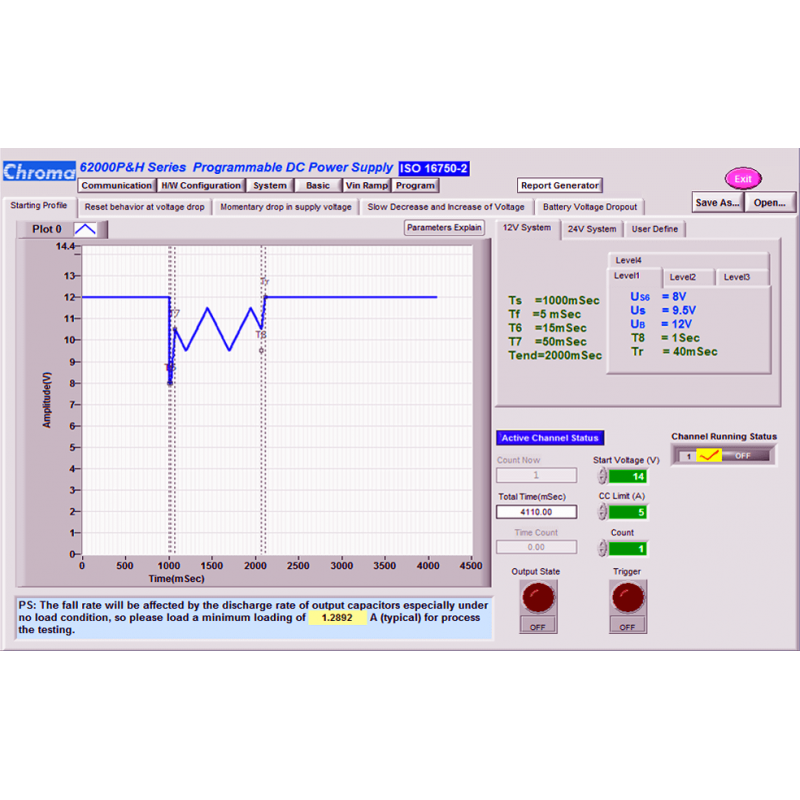

ISO 16750-2 Starting Profile
ISO 16750-2 Reset behavior at voltage drop test
GS 95024-2 Transient overvoltage test
GS 95024-2 Transient undervoltage test
VW 80000 Slow decrease, quick increase of supply voltage test
VW 80000 Jump start test
