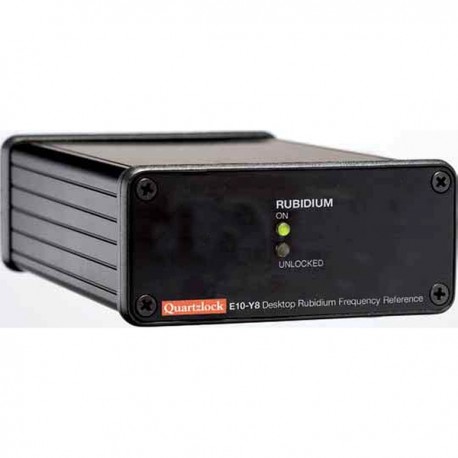

Quartzlock E10-Y8 - Horloge rubidium 8 sorties

Compact Desk Top Low Noise Multiple Output Rubidium Frequency Reference.

The Quartzlock E10-Y8 is a compact simple to install low noise multi-output atomic frequency reference for use as a general purpose 10MHz rubidium frequency standard.

The E10-Y8 is a very low noise rubidium frequency reference with Phase Noise of -110dBc/Hz @ 1Hz and 2x10-12 @ 1s stability that will enable up to eight separate instruments to be referenced.

This frequency standard benefits from having Quartzlock’s SMAC (Sub Miniature Atomic Clock), and very low noise distribution amplifier technology built in, housed in a compact enclosure measuring just 103 x 55 x 122mm with a mass of

The E10-Y8 benefits from low Drift of

The E10-Y8 has a 2 year warranty

These exceptional specifications enable mission critical, interception, monitoring and surveillance of LF to Microwave signals at lowest cost and highest available performance.

Panoramic and communication receivers, spectrum analysers, network analysers, digital storage oscilloscopes, and vector network analysers will all benefit from significantly lower noise performance.

Secure communications, defence and R&D will all benefit from lower noise referencing and with up to 8 instruments locked to an identical frequency

Features

• 10MHz multiple outputs
• Ageing
• 5E-11 accuracy
• 8E-12/S @100s

Benifits

• Atomic accuracy
• Quick and simple to use and install
• Higher sensitivity
• Enables narrower bandwidth filtering
• Improved instrument frequency accuracy and phase noise

Applications

• Frequency referencing of interception and monitoring receive
• Time and frequency standard for calibration and external referencing of all quartz-based instrumentation in RF and microwave laboratories to significantly reduce noise levels and improve accuracy
• Frequency reference for counters, signal generators, spectrum, DSO, VNA, SA, and network analysers
• Secure communications, C4, defence and R&D
