Tabor 2181C - AWG 2,3 GS/s 1 voie 14 bits


Description

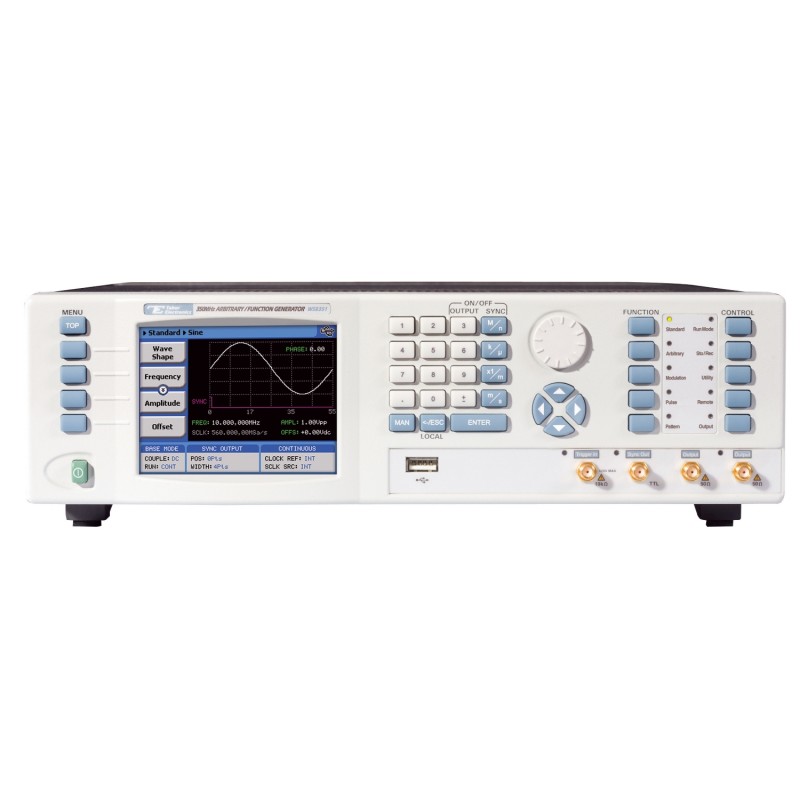

Générateur Tabor 2181C

2.3GS/s Single-Channel Arbitrary Waveform Generator


The WX2181C, 2.3GS/s Single Channel Arbitrary Waveform Generator, offers unrivaled performance, even when compared to instruments designed to generate fewer types of signals or higher sampling rates. Its affordable footprint saves space and cost without compromising bandwidth and signal integrity.


  • Single Channel 2.3GS/s,14 Bit waveform generator
  • 1GHz sine and 500MHz square waves
  • 16M waveform memory, 32M memory optional
  • 3 selectable output paths:
  • 2Vp-p into 50Ω with 700MHz bandwidth, Differential DC output
  • 4Vp-p into 50Ω with 350MHz bandwidth, Differential DC output
  • -20 to +10 dBm into 50Ω with >1GHz bandwidth, RF AC output
  • AM, FM, FSK, PSK, ASK, Amp. Hop, Freq. Hop, Sweep & Chirp
  • Powerful pulse composer for analog, digital and mixed signals
  • 32 Bit LVDS Parallel / Separate Outputs (Option D)
  • Smart trigger enables trigger hold-off, detect, wait, abort and restart
  • Advanced sequencer for step, loop, nest and jumps scenarios
  • Two differential markers with programmable positions, width&levels
  • Two instrument synchronization to form a multi-channel system
  • User friendly 4” color LCD display
  • Remote control through LAN, USB and GPIB
  • Store/recall capability on disk-on-key or 4GB internal memory
  • LXI Class C compliant
