Tabor 9250 - Amplificateur 40 Vpp differentiel


Description

Générateur Tabor 9250

Dual / Differential-Channel Wideband amplifier up to 40Vpp

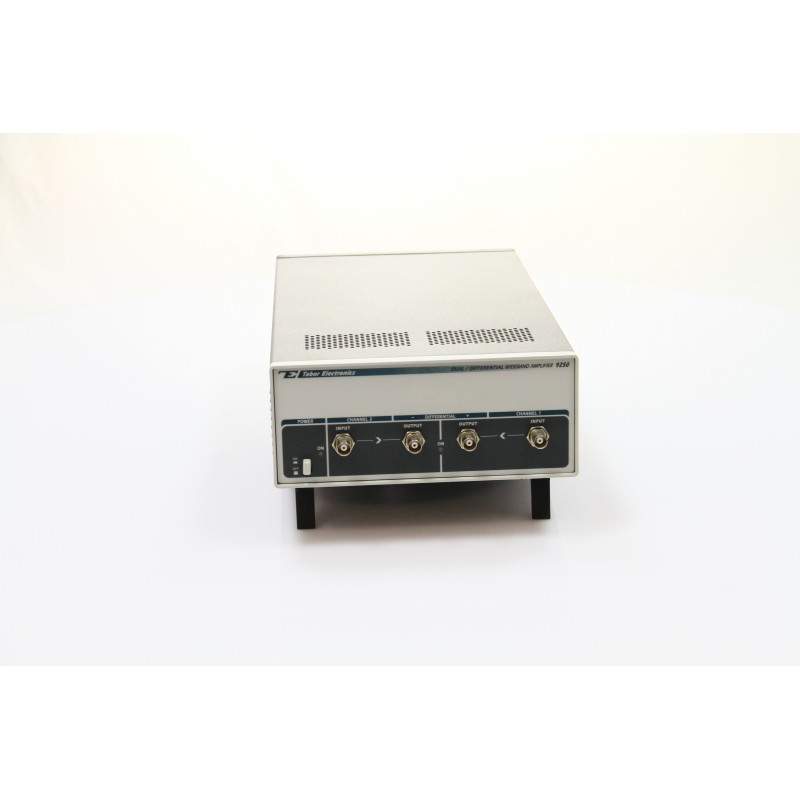

The 9250 is a bench-top, 2U, half 19” rack size, fully metal case dual channel amplifier. The instrument can be configured to be used as two, single-ended independent channels, or as a one input with two differential outputs. The amplifier case was designed to stack on top or below other Tabor products. It also can be mounted alongside a Tabor generator in a standard 19" rack. The waveform-amplifier combo is an ideal solution for virtually any high-voltage, wide bandwidth application.


  •     Large signal bandwidth to 15 MHz
  •     Small signal bandwidth to 30 MHz
  •     High amplitude to 40Vp-p (into high impedance)
  •     Slew rate to 200V/µs
  •     Low distortion
  •     Custom Configuration of: Gain, Input impedance, Output impedance, Output configuration
