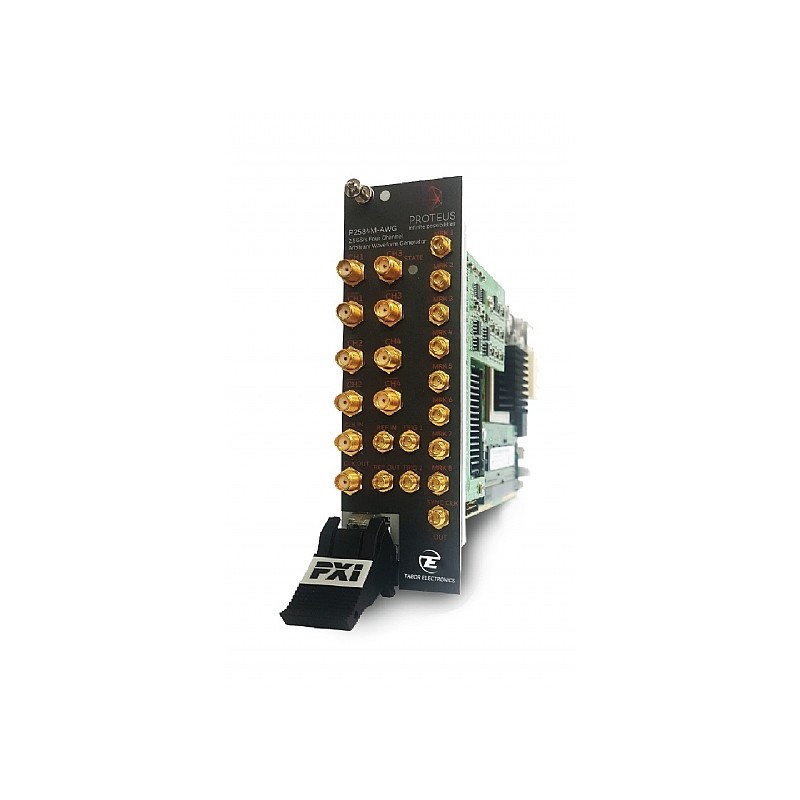

Tabor - Proteus Modules PXIe


Arbitrary Waveform Transceivers

Proteus PXIe Modules

4 channel 1.25 GS/s or 2.5 GS/s version

2 channel 9 GS/s  version

AWG (Arbitrary Waveform Generator)

AWT (Arbitrary Waveform Transceiver)

Based on PXI Express industry standard the modular architecture can easily scale to hundreds of channels, while keeping the required space to a minimum. The compact form size enables up to 4 generator output channels and 2 digitizer input channels to occupy only 3 PXI slots. For synchronized, phase coherent, multi-channel applications such as quantum physics and radar applications the Proteus arbitrary waveform transceiver / generator  is an ideal, space efficient and cost effective solution.

  • Dual or four channel 1.25GS/s & 2.5GS/s 16 bit, or dual channel 9GS/s having 16 bit AWG & AWT configuration
  • Integrated NCO for digital upconverting to microwave frequencies
  • Real time data streaming directly to the FPGA for continuous and infinite waveform generation
  • 9GHz bandwidth, 2.7GS/s 12 bit digitizer option for feedback control system and conditional waveform generation
  • Innovative task oriented sequence programming for maximum flexibility to generate any imaginable scenario
  • Up to 16GS/s waveform memory with the ability to simultaneously generate and download waveforms
  • Excellent phase noise and spurious performance
  • User customizable FPGA for demodulation digital filtering and application specific
  • High speed PCIe GEN3x8 lanes communication interface
  • Modular and space efficient PXI Express platform, easily scalable to hundreds of channels
